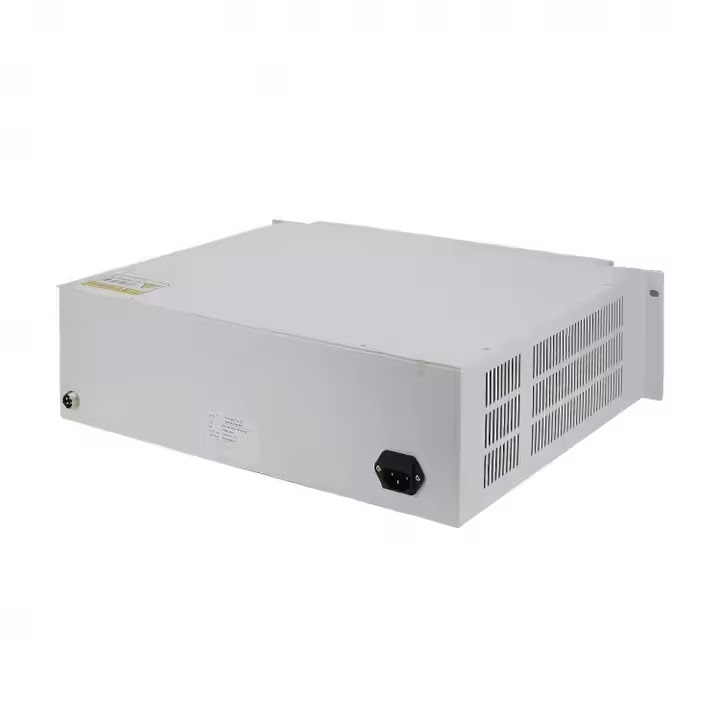

8 BATTERY CELL CAPACITY CABINET 5V 6A (SKXD-08-5V6A) (b473)

Product Price

₹55,000

Description

8 BATTERY CELL CAPACITY CABINET 5V 6A (SKXD-08-5V6A)

Product Data Sheet

1 Year Warranty

Compact High-Current Testing for Cylindrical Lithium-Ion Cells

The SKXD-08-5V6A is a precision-engineered battery capacity testing cabinet designed for R&D labs, pilot lines, and custom battery testing. Featuring 8 independent test channels, each with a 5V/6A rating, this system is ideal for evaluating high-capacity cylindrical cells such as 18650, 21700, and 26650.

This cabinet delivers high-current charge and discharge testing with professional-grade accuracy in a compact, desktop-friendly footprint — ideal for research institutions and specialized battery manufacturers.

Key Features

  • 8 Independent Test Channels
    Each channel operates independently, supporting customizable test parameters for simultaneous evaluation of multiple cells.

  • 5V/6A Output Per Channel
    Ideal for high-power battery cells, enabling rapid testing and grading without compromising precision.

  • High-Accuracy Measurement

    • Voltage Accuracy: ±0.02%FS
    • Current Accuracy: ±0.05%FS

  • Intelligent Software Control

    • Real-time status monitoring and data logging
    • Step-based programmable charge/discharge cycles
    • Built-in PC software for easy operation

  • Safety and Protection Systems

    • Overcharge, over-discharge, overcurrent, and over-temperature protection
    • Automatic stop and alert for abnormal conditions

  • Compact & Modular Design

    • Ideal for desktop or rack mounting
    • Easy maintenance and cable management
    • Clean, industrial-grade housing

Technical Specifications

  • Model SKXD-08-5V6A
  • Channel Count 8 Independent Channels
  • Voltage Range 0–5V
  • Current Range 0–6A
  • Voltage Accuracy ±0.02%FS
  • Current Accuracy ±0.05%FS
  • Supported Cells Cylindrical: 18650, 21700, 26650
  • Data Export Excel, PDF
  • Power Supply AC 220V ±10%, 50Hz
  • Communication RS485 / USB / LAN (optional)
  • Cooling Forced Air Cooling
  • Dimensions 450mm × 500mm × 140mm
  • Weight ~35kg

Applications

  • Battery R&D Labs
    Conduct experimental charge/discharge protocols for new chemistries.

  • University Research Centers
    Perform reliable data-driven studies on lithium-ion cell behavior.

  • Battery Customization Workshops
    Grade and analyze cells for high-performance applications.

  • Quality Control Lines
    Confirm cell reliability and capacity before pack assembly.

Why Choose the SKXD-08-5V6A?

  • High Current Capability: 6A per channel for fast, real-world testing
  • Compact and Scalable: Perfect for small-scale labs or startups
  • Precision Engineering: Trusted test results, cycle after cycle
  • Affordable, Professional-Grade Equipment
  • Ideal for Innovation & Development
